RFID Module
JMY6123
Loading...
  • Description

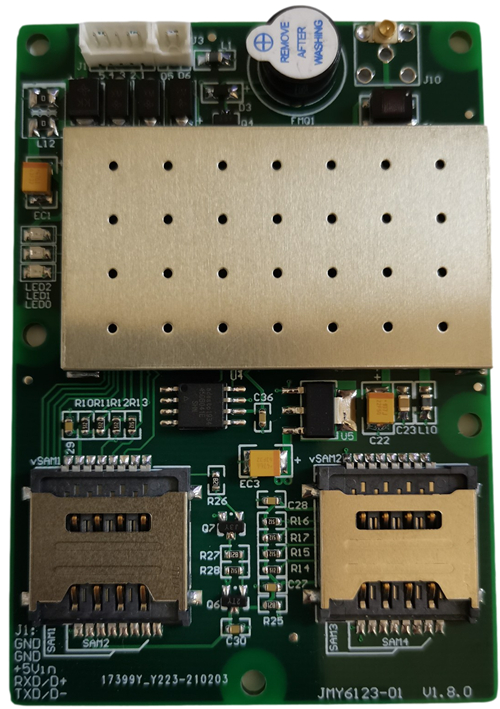

JMY6123 is a series of RFID read/write module. It has various functions and supports multi ISO/IEC standard of contactless card. The RF protocol is complex, but the designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module.
The impedance between RF module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability.
The module and antenna is split design. 50ohm coaxial cable are linked the antenna and module.
  • Main Characteristics
  • Module split antenna, connected by 50ohm coaxial cable, flexible antenna size and layout
  • EMV2010 certification ability
  • Metal shield for electromagnetic shielding
  • 4 SAM slots and 512K bytes data FLASH, full fill payment system usage
  • Qualifications
  • PCD model: NXP CL RC663
  • Working frequency: 13.56MHz
  • RF standard: ISO14443A, ISO14443B, ISO15693, ISO7816, ISO18000-3MODE3
  • Anti collision ability: Full function anti collision; be able to process multi-cards; be able to set operate single card only.
  • Auto detecting card: Supported, default OFF, could be set
  • SAM slots: 4, T=0 & T=1 9600, 19200, 38400, 55800, 57600, 115200bps
  • Power supply: DC 5V (±10%)
  • Interface: RS232C, UART by order
  • Communication speed:
  •         UART:  19200bps, 9600bps, 38400bps, 57600bps, 115200bps
  • Interface level: UART 3.3V (5V tolerance)
  • Max. command length:
  •         JCP04:  253bytes
  •         JCP05:  510bytes
  • Power consumption: Max.150mA
  • Operating distance: 100mm (M1 typical distance, depending on card quality)
  • Dimension: 79mm * 55mm * 7.5mm (without Antenna)
  • Weight: About 30g (without Antenna)
  • ISP: Supported
  • RoHS: Compliant
  • Operating temperature: -25 to +85°C
  • Storage temperature: -40 to +125°C
Model NO. JMY6123
PCD NXP CL RC663
Interface RS232C, UART by order
SAM slots 4
RF Standard
ISO14443A
ISO14443B
ISO15693
ISO7816
ISO18000-3MODE3
Reading distance 100mm (M1 typical distance, depending on card quality)
PICC

MIFARE 1K
MIFARE 4K
MIFARE Ultralight
MIFARE Ultralight C
MIFARE Mini
MIFARE DESFire
MIFARE Plus
T=CL TYPE A
SR176
SRI512
SRI1K
SRI2K
SRI4K
SRIX4K
T=CL TYPE B
I.CODE 1
I.CODE SLI
I.CODE SLI-S
TI Tag-it series
ST LRI series
NFC Passive Initiator
