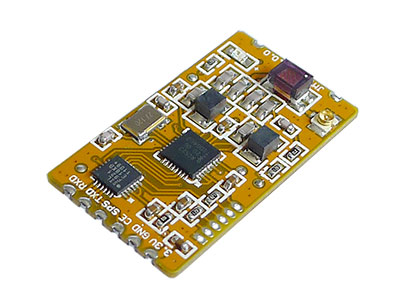

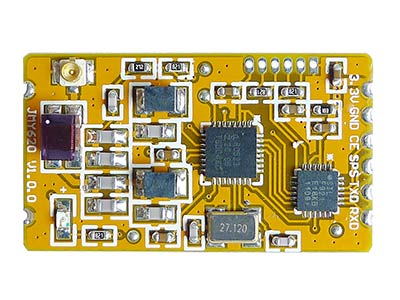

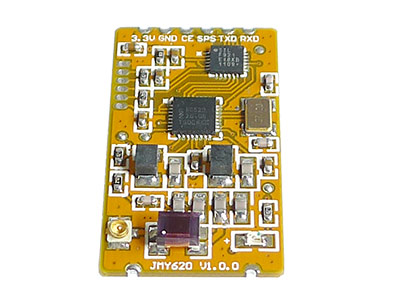

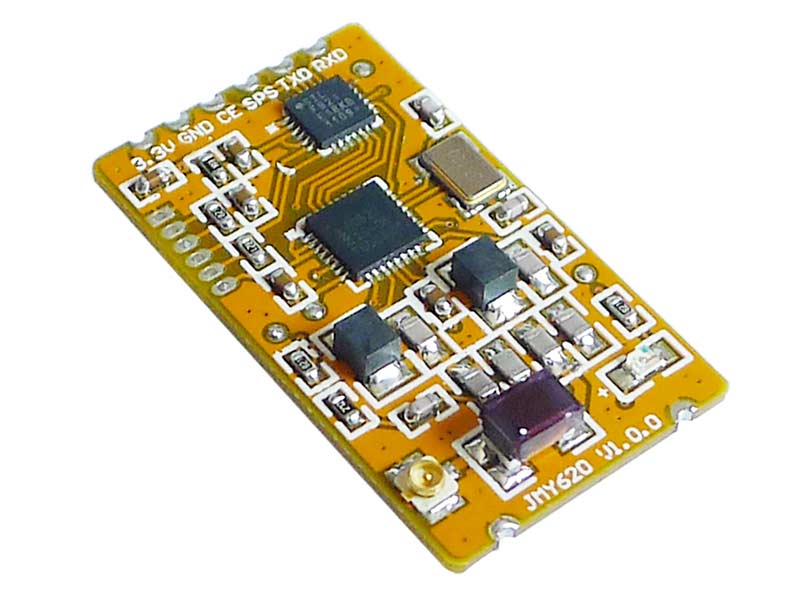

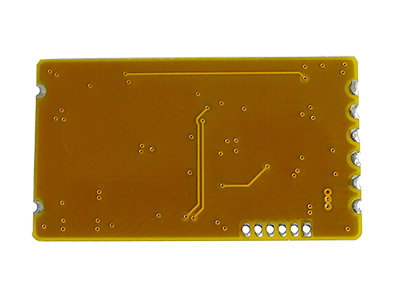

  • Description
JMY620 is a series of RFID read/write module with UART and IIC communication port. JMY620 has various functions and supports multi ISO/IEC standard of contactless card. The RF protocol is complex, but the designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module.
The module and antenna is split, so flexible antenna size and layout can be chosen. It connects outside antenna by 50ohm coaxial cable. The surface mount and very small module size are fit to portable devices. The impedance between RF circuit and antenna was tuned by impedance analyzer, so it has excellent performance and stability. It is based on NXP MF RC522, MF RC523, PN512, so it is low power consumption, and also could be set RF output level.
  • Main Characteristics
  • Module split antenna, connected by 50ohm coaxial cable, flexible antenna size and layout
  • Surface mount and very small module size to fit portable devices
  • Low power consumption, could be set RF output level
  •
  • Qualifications
  • PCD: NXP MF RC522, MF RC523, PN512
  • PCB Layers:2
  • Working frequency: 13.56MHz
  • RF standard: ISO14443A, ISO14443B
  • Anti collision ability: Full function anti collision; be able to set multi-cards or single card
  • Auto detecting card: Termsed, default OFF, could be set
  • Data FLASH: 512 Bytes
  • Power supply: DC 3.3V (±10%)
  • Interface: UART and IIC
  • Interface level: UART / IIC: 3.3V (TTL level; 5V tolerance)
  • Communication speed:
  •         IIC:  Max.200Kbps
  •         UART:  19200bps, 9600bps, 38400bps, 57600bps, 115200bps
  • Max. command length:
  •         JCP04:  253bytes
  •         JCP05:  510bytes
  • Power consumption:
  •         Max.:  100mA
  •         Normal model:  30mA
  •         Idle model:  100uA
  • Operating distance: 60mm (M1 typical distance, depending on card quality)

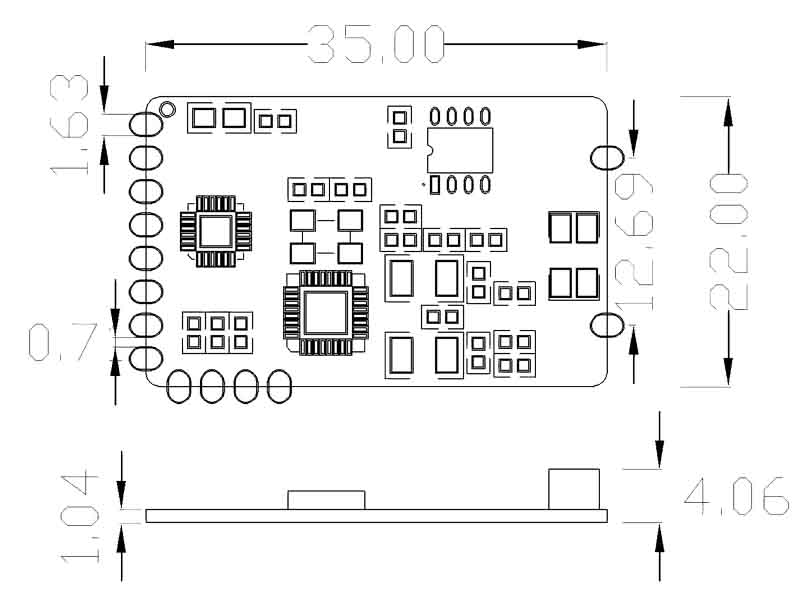

  • Dimension: 20mm*35mm*4.1mm (without Antenna)
  • Weight: About 10g (without Antenna)
  • ISP: Termsed
  • RoHS: By order
  • CE certification: in plan (Jan.17,2015)
  • Operating temperature: -25 to +85°C
  • Storage temperature: -40 to +125°C
  •
Model NO. JMY620A JMY620C
PCD NXP MF RC522 NXP MF RC523
Interface UART and IIC
Data FLASH 512 bytes
RF Standard ISO14443A
ISO14443A
ISO14443B
PICC



MIFARE 1K
MIFARE 4K
MIFARE Ultralight
MIFARE Ultralight C
MIFARE Mini
MIFARE DESFire
MIFARE Plus
T=CL TYPE A




MIFARE 1K
MIFARE 4K
MIFARE Ultralight
MIFARE Ultralight C
MIFARE Mini
MIFARE DESFire
MIFARE Plus
T=CL TYPE A

SR176
SRI512
SRI1K
SRI2K
SRI4K
SRIX4K
T=CL TYPE B
