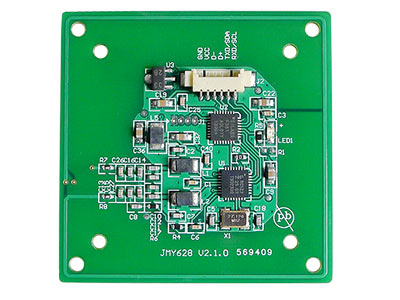

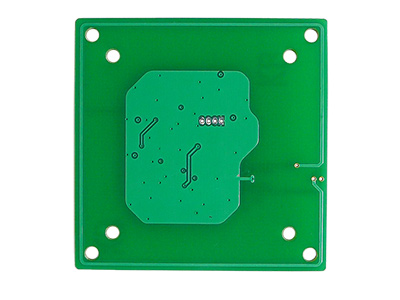

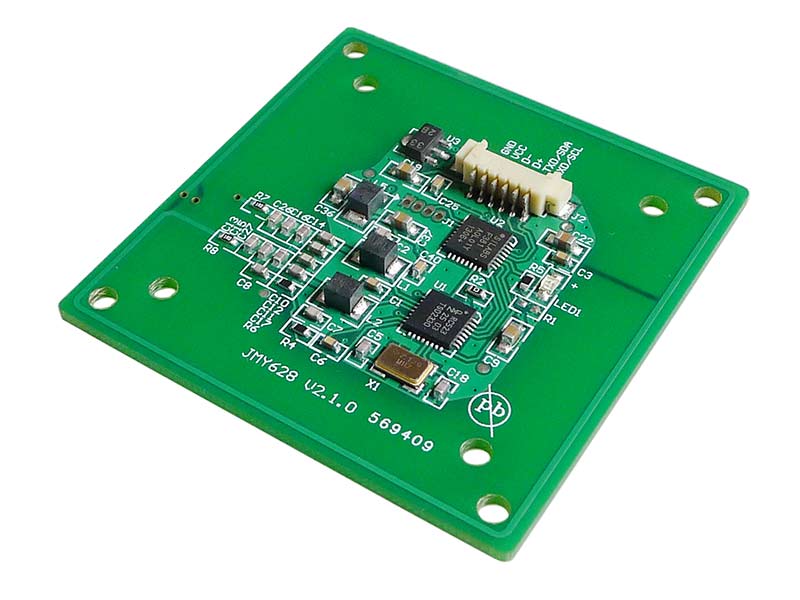

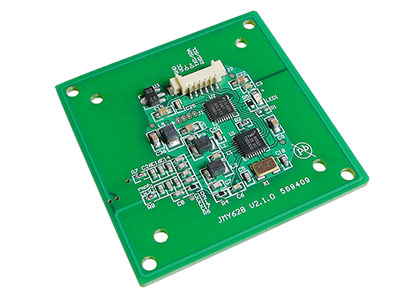

RFID Module
JMY628
Loading...
  • Description
JMY628 is a series of RFID read/write module with UART or IIC communication port. JMY628 has various functions and supports multi ISO/IEC standard of contactless card. The RF protocol is complex, but the designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module. The module and antenna is integrated. The impedance between RF circuit and antenna was tuned by impedance analyzer, and then the module has excellent performance and stability.
  • Main Characteristics
  • Modules integrated antenna, excellent consistency and stability
  • Light and slim
  • USB HID interface, convenience to use on PC
  •
  • Qualifications
  • PCD: NXP MF RC522, MF RC523, PN512
  • PCB Layers:4
  • Working frequency: 13.56MHz
  • Termsed standard: ISO14443A, ISO14443B
  • Anti collision ability: Full function anti collision; be able to set multi-cards or single card
  • Auto detecting card: Termsed, default OFF, could be set
  • Data FLASH: 512 Bytes
  • Power supply: DC 5V (±10%)
  • Interface: USB HID and UART or IIC by order
  • Communication speed:
  •         IIC:  Max.200Kbps
  •         UART:  19200bps, 9600bps, 38400bps, 57600bps, 115200bps
  •         USB:  2.0 HID class
  • Max. command length:
  •         JCP04:  253bytes
  •         JCP05:  510bytes
  • Interface level: UART / IIC: 3.3V (TTL level; 5V tolerance, by pull up)
  • Power consumption: 100mA
  • Operating distance: 60mm (M1 typical distance, depending on card quality)

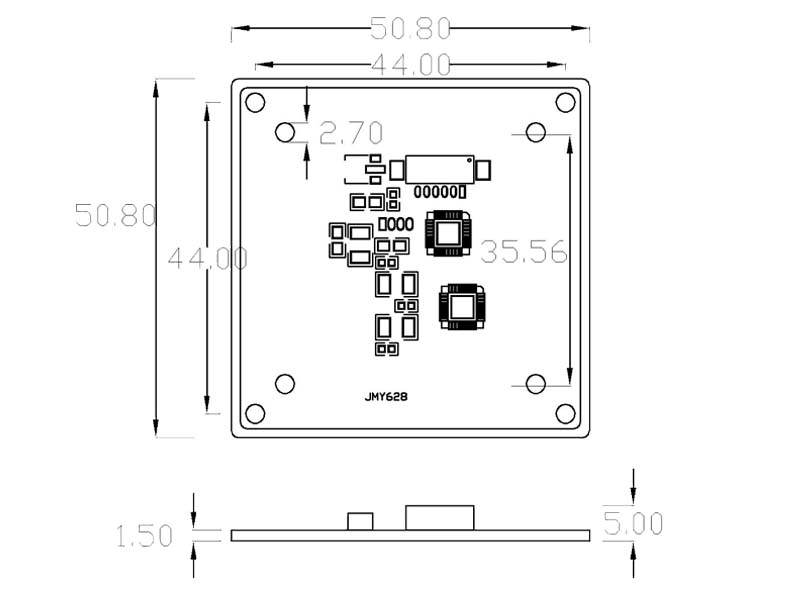

  • Dimension: 50.8mm * 50.8mm * 7.5mm
  • Weight: About 20g
  • ISP: Termsed
  • RoHS: By order
  • CE certification: in plan(Jan.17,2015)
  • Operating temperature: -25 to +85°C
  • Storage temperature: -40 to +125°C
  •
Model NO JMY628A JMY628C
PCD NXP MF RC522 NXP MF RC523
Interface USB HID and UART or IIC by order
Data FLASH 512 bytes
RF Standard ISO14443A
ISO14443A
ISO14443B
PICC



MIFARE 1K
MIFARE 4K
MIFARE Ultralight
MIFARE Ultralight C
MIFARE Mini
MIFARE DESFire
MIFARE Plus
T=CL TYPE A



MIFARE 1K
MIFARE 4K
MIFARE Ultralight
MIFARE Ultralight C
MIFARE Mini
MIFARE DESFire
MIFARE Plus
T=CL TYPE A

SR176
SRI512
SRI1K
SRI2K
SRI4K
SRIX4K
T=CL TYPE B
