Access Card Reader
JMY370
Loading...
  •
  • Product introduction

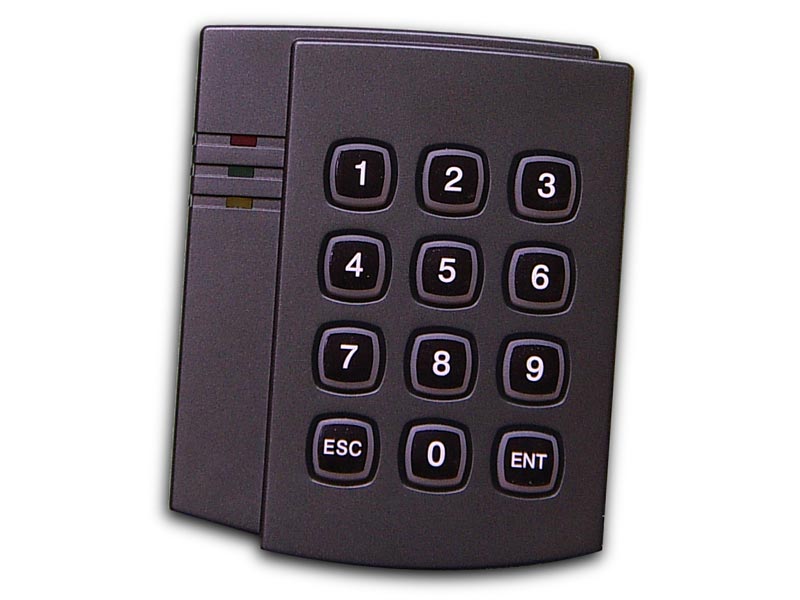

JMY370 series are the popular type access card reader. It can be input information with the keyboard. The way of installation is 86 electrician-boxes. The interface is RS485 & Wiegand. And there are LED status indicator and buzzer in the JMY370. So these are of sound and light show for reading-card status. You can set the function and parameters easily under cooperation with JMY30x series access controller. The way of opening door can be of code + card. And also you can enjoy from the intelligent control.
  • Qualifications
  • Reading card frequency: 13.56MHz
  • Operating distance: 0 ~ 100mm
  • Communication rate: 9600bps ~ 115200bps
  • RF standard: EM & ISO14443A & ISO14443B & ISO15693
  • The number of Key: 12
  • Status indicator: LED & Buzzer
  • Interface: RS485, Wiegand
  • Operating temperature: -20 ~ +70 ℃ (-68 ~ 158°F)
  • Power supply: DC 8~15V
  •
  • Optional Shells
  •

    M L
