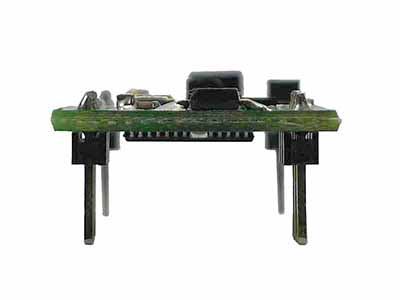

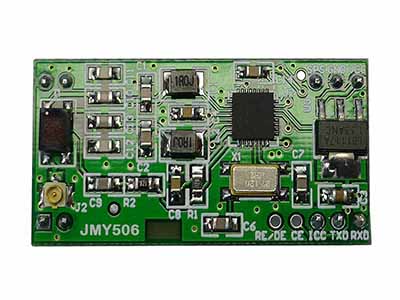

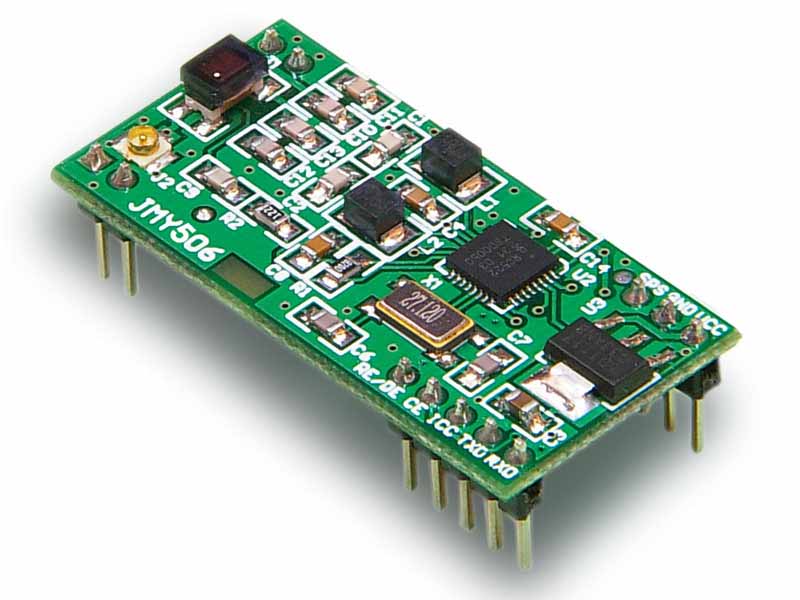

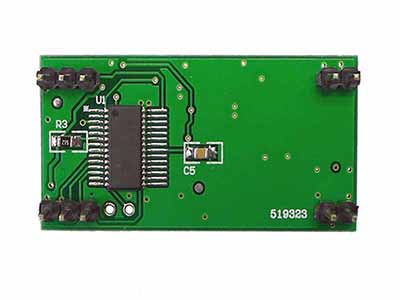

RFID Module
JMY506
Loading...
  • Description
        JMY506 series are RFID reader/writer module with UART and IIC serial ports. JMY506 has various functions and supports multi ISO/IEC standard of contactless card; the cards from different suppliers. The RF protocol is complex. But the designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module through IIC or UART interface. And the module and antenna are separate design. The impedance between RF module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability. The module and antenna is linked by 50ohm coaxial line. The performance is good, though the wire can reach 10m. Normally the wire should be 60cm that is the module's best performance and stability.
  • Qualifications
  • PCD: NXP RC522, RC523
  • Working frequency: 13.56MHz
  • Antenna connection: by 50ohm coaxial line, (recommend 60cm, Max. 10 meters), due to order
  • RF standard: ISO14443A, ISO14443B
  • Operating distance: 80mm(depending on card and antenna design)
  • Anti collision ability: Full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only
  • Auto detecting card: Supported, default OFF
  • EEPROM: 512 Bytes
  • Interface: IIC&UART(selected by SPS pin, recommend to use IIC)
  • Communication rate: IIC--400Kbps, UART--19.2Kbps/115.2Kbps
  • Max.command length: 254 Bytes
  • Interface level: 3.3V(TTL level; 5V tolerance)
  • Power supply: DC 5.0V
  • Power consumption: 50mA

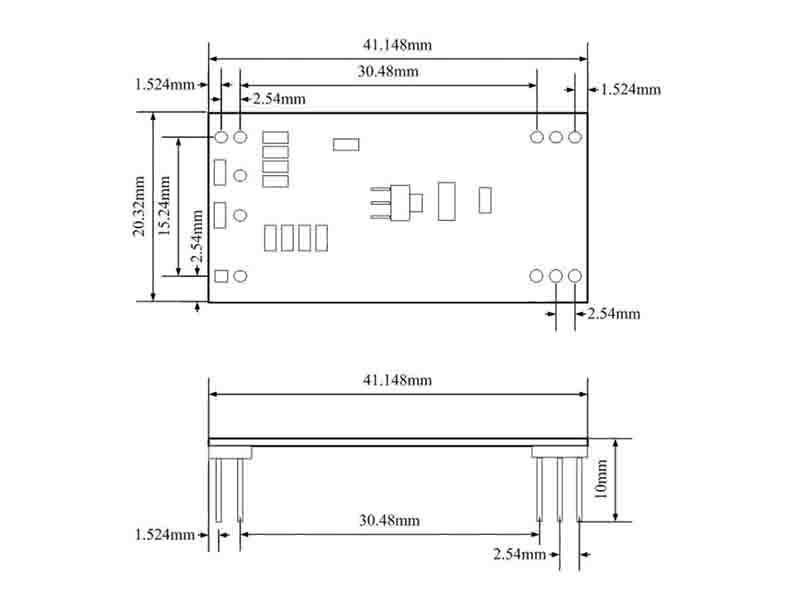

  • Dimension: 42mm×21mm×8mm
  • Package: DIP32
  • Weight: about 15g
  • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
  • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
  • ISP: Supported
  • RoHS: Compliant
  •
Model NO. JMY506L JMY506M JMY506A JMY506C JMY506D JMY506E
Dimension 42mm*21mm*8mm
Interface UART/IIC select by users
Communication Command Length 72 bytes 254 bytes 511 bytes
Antenna connection 50ohm coaxial cable, 60cm
MCU P89LPC931 P89LPC932A1 P89LPC936
PCD RC522 RC523 RC522 RC523
RF Standard ISO14443A
ISO14443A
ISO14443B
ISO14443A
ISO14443A
ISO14443B
Reading distance 70mm 80mm
PICC



MIFARE 1K
MIFARE 4K
FM11RF08
Ultralight
Ultralight C
MIFARE Mini



MIFARE 1K
MIFARE 4K
FM11RF08
Ultralight
Ultralight C
MIFARE Mini



MIFARE 1K
MIFARE 4K
FM11RF08
Ultralight
Ultralight C
MIFARE Mini
DESfire
MIFARE ProX
T=CL TYPE A



MIFARE 1K
MIFARE 4K
FM11RF08
Ultralight
Ultralight C
MIFARE Mini
DESfire
MIFARE ProX
T=CL TYPE A

SR176
SRI512
SRI1K
SRI2K
SRI4K
SRIX4K
AT88RF020
T=CL TYPE B



MIFARE 1K
MIFARE 4K
FM11RF08
Ultralight
Ultralight C
MIFARE Mini
DESfire
MIFARE ProX
T=CL TYPE A



MIFARE 1K
MIFARE 4K
FM11RF08
Ultralight
Ultralight C
MIFARE Mini
DESfire
MIFARE ProX
T=CL TYPE A

SR176
SRI512
SRI1K
SRI2K
SRI4K
SRIX4K
AT88RF020
T=CL TYPE B
