JMY980
JMY980
  •
  • Description

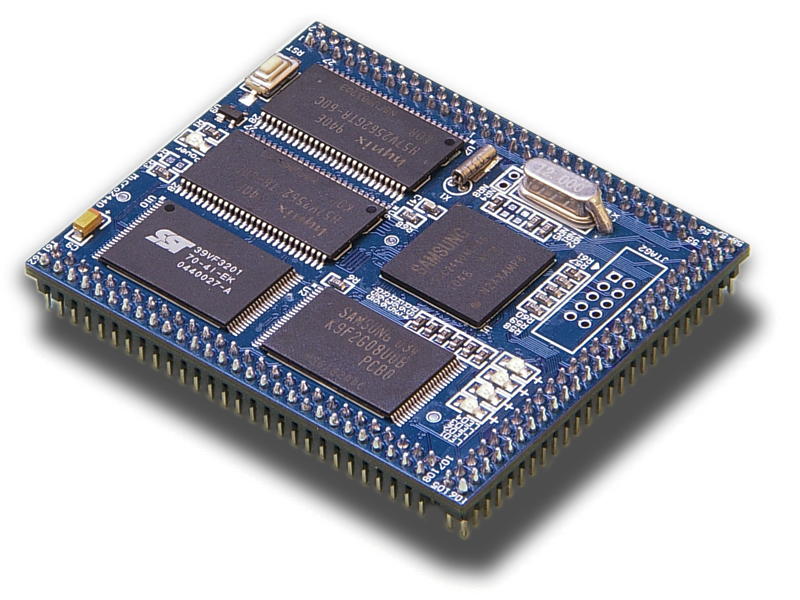

       JMY980 is a core board, 6 layer board design, and the use of same long wiring to meet signal integrity. It contains the basic 5V power supply power circuit, JATG the debug port, the user debug indicator, reset circuit, as well as the core of the CPU and the memory cell. FLASH memory cell contains the NAND Flash and NORFlash two types, selectable via jumper J1 NAND or NOR boot the system. NOR Flash which put the BIOS does not change often, NAND Flash programming complete system program (Bootloader, kernel, file system, etc.).
  • Qualifications
  • • Working frequency: 400MHz
  • • Interface: GPIO(56Pin, 2.0mm Spacing) interface PA: 1; LCD(50Pin, 2.0mm Spacing) and CMOS CAMERA interface PB: 1; System Bus Interface PC(56Pin, 2.0mm Spacing): 1; JTAG interface(10Pin, 2.0mm Spacing): 1
  • • Power supply: DC5V
  • • Power consumption: 690mA
  • • Dimension: 63mm × 52mm × 10mm
  • • Weight: about 20g
  • • Operating temperature: -40 ~ +85 ℃
  • • Storage temperature: -65 ~ +150 ℃
  •
Operation Instruction
JMY980(PDF)
Model NO. JMY980
Interface U-shaped interface(PA, PB, PC)
MCU S3C2440A(Kernel: ARM920T)
SDRAM 64M SDRAM; 32bit Data bus; Clock frequency: Max.166MHz
Flash Memory 2M Nor Flash and 64M Nand Flash
Data storage 4096K bytes, 512 bytes/block
Display 4 LED lights in the board (external TFT LCD screen)
Buzzer No(PWM external)
System clock and RTC Internal real-time clock (with battery backup),12M Passive crystal
Operating system Linux2.6.X, WindowsCE5.0/6.0, uCos
