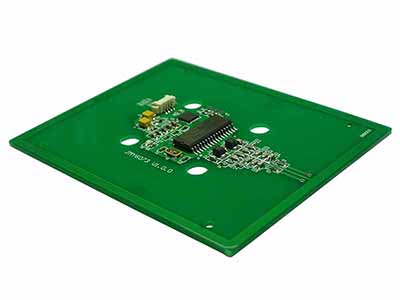

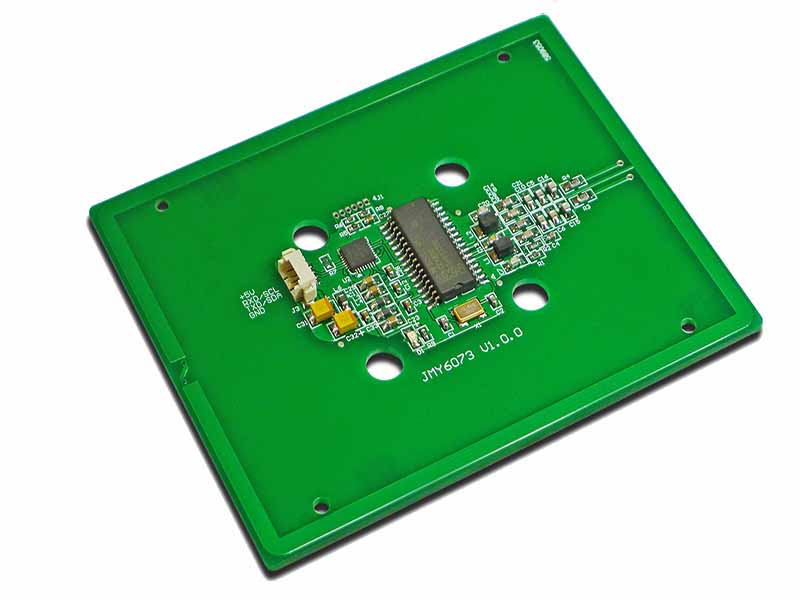

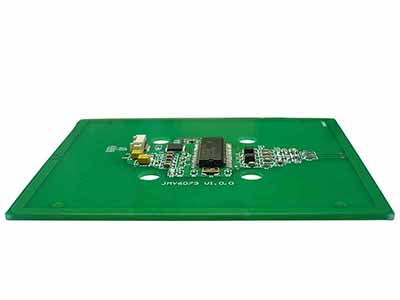

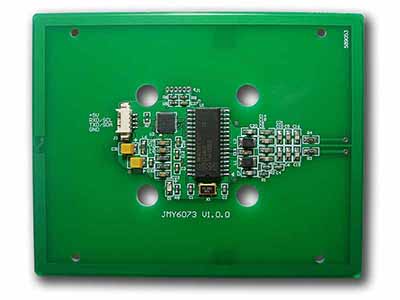

JMY6073
JMY6073 is a RFID read/write module with UART, IIC ports. JMY6073 has various functions and supports multi ISO/IEC standard of contactless card. The RF protocol is complex. The designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module.
The module has a length of 506 bytes command buffer could send APDU over 256 bytes to T=CL smart cards. The modules support FSDI=8 of ISO14443-4. The module and antenna is integrated. The impedance between RF circuit and antenna was tuned by impedance analyzer, and then the module has excellent performance and stability.
Qualifications
- • PCD: NXP RC531, RC632
- • Working frequency: 13.56MHz
- • RF standard: ISO14443A, ISO14443B, ISO15693
- • Anti collision ability: Full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only
- • Auto detecting card: Supported, default OFF. The default state can be set.
- • EEPROM: 512 Bytes
- • Power supply: DC 5V (±0.5V)
- • Interface: IIC & UART
- • Communication rate: IIC--400Kbps, UART--19.2Kbps/115.2Kbps
- • Interface level: UART/IIC: 3.3V (TTL level; 5V tolerance)
- • Power consumption: 150mA(Working mode)
- • Operating distance: 100mm (depending on card and antenna design)

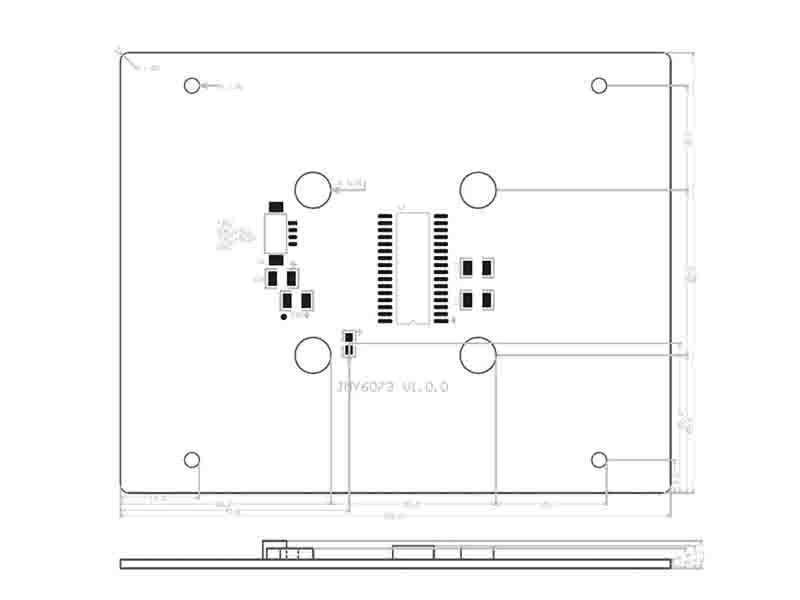

- • Dimension: 100mm×80mm×5mm
- • Weight: about 30g
- • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
- • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
- • ISP: Supported
- • RoHS: Compliant
-
Model NO. |
JMY6073C |
JMY6073H |
Dimension |
100mm*80mm*5mm |
Interface |
UART/IIC select by users |
Communication Command Length |
254 Bytes; 510 Bytes |
PCD |
RC531 |
RC632 |
RF standard |
|
ISO14443A |
ISO14443B |
ISO15693 |
|
Reading distance |
100mm |
PICC |
MIFARE 1K |
MIFARE 4K |
FM11RF08 |
Ultralight |
Ultralight C |
MIFARE Mini |
DESfire |
MIFARE ProX |
T=CL TYPE A |
|
SR176 |
SRI512 |
SRI1K |
SRI2K |
SRI4K |
SRIX4K |
AT88RF020 |
T=CL TYPE B |
|
|
MIFARE 1K |
MIFARE 4K |
FM11RF08 |
Ultralight |
Ultralight C |
MIFARE Mini |
DESfire |
MIFARE ProX |
T=CL TYPE A |
|
SR176 |
SRI512 |
SRI1K |
SRI2K |
SRI4K |
SRIX4K |
AT88RF020 |
T=CL TYPE B |
|
NXP I.CODE SLI |
TI Tag_it HF-I |
ST LRI |
|
|
