MR7801
Loading...
  • Description

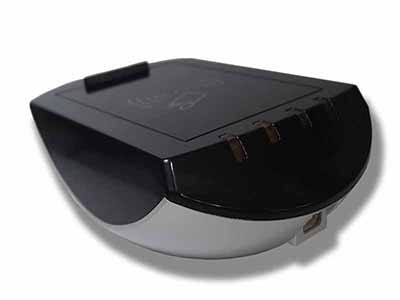

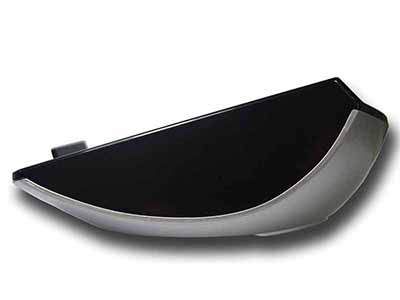

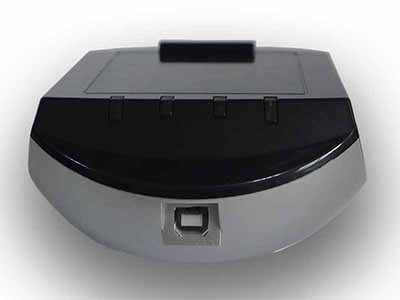

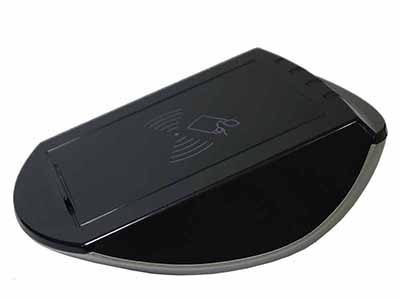

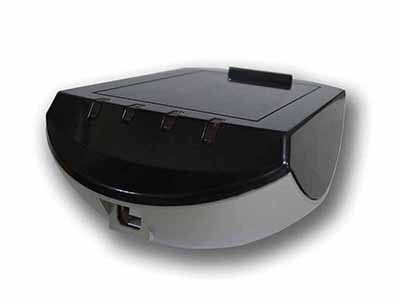

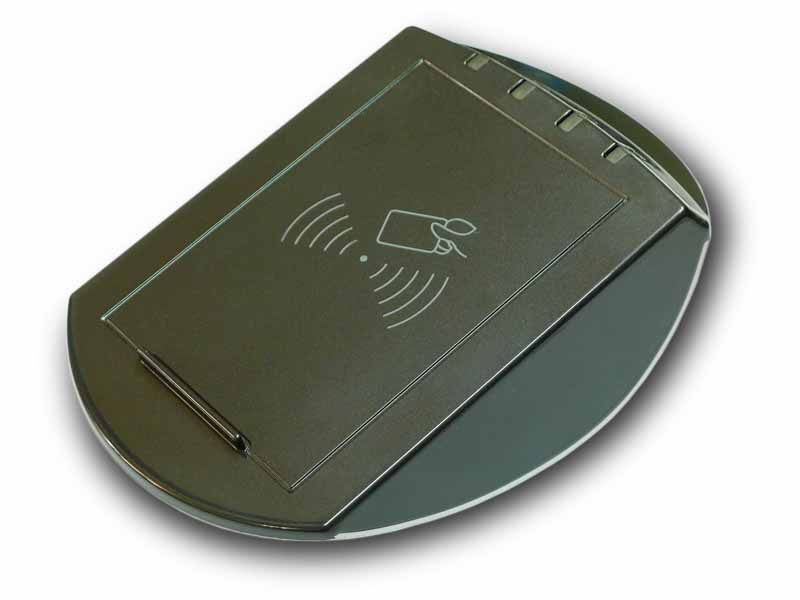

        MR7801 series, based on NXP PCD is popular and high performance desktop reader/writer. The reader supports series IC cards according to ISO14443, ISO15693; various contactless IC card under international standard; especially the contactless CPU cards under ISO14443-4. Meanwhile the reader is available to pass EMV2000 and PBOC 2.0 and be authenticated by many laboratorial certifications---Visa Wave & Pay Pass (by FIME) and the Bank Card Test Center. There are 4 SAM card slots in the reader(T=0 and T=1). The reader supports card-reset of various communication rate; PPSS operation after card-reset. Meanwhile the new outside Housing show you a fresh and respect.
  • Qualifications
  • PCD: NXP RC632, RC531, RC400, RC500
  • MCU: C8051F380
  • Working frequency: 13.56MHz
  • RF standard: ISO14443A, ISO14443B, ISO15693
  • Operating distance: 100mm (MIFARE One, typical distance)
  • SAM card slot: 4 slots, (supported ISO7816 T=0 and T=1)
  • Interface: USB (build-in CP2102 USB to UART converter) or USB PC/SC
  • Baud rate: 9600--115200 BPS
  • LED: Four (Red, Yellow, Blue, Green)
  • Power supply: DC5V
  • Power consumption: 0.9W
  • Dimension: 135mm×100mm×45mm
  • Weight: about 200g
  • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
  • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
  •
Model NO. MR7801UA MR7801UC MR7801UG MR7801UH
Interface USB (build-in CP2102 USB to UART converter) or USB PC/SC
MCU C8051F380
PCD RC500 RC531 RC400 RC632
SAM card slot 4 slots, supported 9600, 19200, 38400, 55800, 57600, 115200bps
Display LED: Four (Red, Yellow, Blue, Green)
Buzzer yes
RF Standard ISO14443A
ISO14443A
ISO14443B
ISO15693
ISO14443A
ISO14443B
ISO15693
Reading distance 100mm(MIFARE typical distance)
PICC



MIFARE 1K
MIFARE 4K
FM11RF08
Ultralight
Ultralight C
MIFARE Mini
DESfire
MIFARE Plus
MIFARE ProX
T=CL TYPE A

ISO7816 T=0
ISO7816 T=1



MIFARE 1K
MIFARE 4K
FM11RF08
Ultralight
Ultralight C
MIFARE Mini
DESfire
MIFARE Plus
MIFARE ProX
T=CL TYPE A

SR176
SRI512
SRI1K
SRI2K
SRI4K
SRIX4K
AT88RF020
T=CL TYPE B

ISO7816 T=0
ISO7816 T=1



NXP I.CODE SLI
TI Tag_it HF-I
ST LRI

ISO7816 T=0
ISO7816 T=1



MIFARE 1K
MIFARE 4K
FM11RF08
Ultralight
Ultralight C
MIFARE Mini
DESfire
MIFARE Plus
MIFARE ProX
T=CL TYPE A

SR176
SRI512
SRI1K
SRI2K
SRI4K
SRIX4K
AT88RF020
T=CL TYPE B

NXP I.CODE SLI
TI Tag_it HF-I
ST LRI

ISO7816 T=0
ISO7816 T=1
