MIFARE 1K (S50)
Loading...

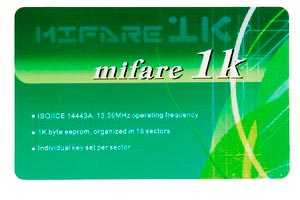

  • Product introduction
       MIFARE 1K (S50) is the contactless IC card which is made under NXP MF1 IC S50. Usually it is called MIFARE 1K or S50 according to ISO14443A. The UID has four or seven bytes. The storage capacity is 1K. The date can be protected by electronic key. We can offer PVC blank card, printing card, paper-sticker tag, Key chain, TOKEN and thin & thick cards of various specifications. The applications contain Door-control system, Checking-in system, Identification system, Physical distribution system, Automation system and various member-cards such as: meal-selling, subway, public transportation, club and so on. And also it contains electronic consumption, electronic ticket, animal identification, target tracking, laundry management and various payment systems.
  • Qualifications
  • Chip: NXP MIFARE 1 IC S50
  • Storage capacity: 1K Bytes
  • Working frequency: 13.56 MHz
  • Communication rate: 106Kbps
  • Operating distance: 0 ~ 100mm
  • Operating time: 1 ~ 5ms
  • Operating temperature: -20 ~ 55 ℃ (-68°F ~ +131°F)
  • EEPROM: >100, 000 times
  • Data retention: >10 years
  • Dimension: ISO standard card 85.6x54x0.82
  • Packaging materials: PVC, PET, PETG, 0.13mm copper wire
  • Encapsulation technology: Ultrasonic automatic plant line / Automatic touch welding
  • RF standard: ISO14443A
  • Available for size: 85.6×54, 83×20, 70×40, 50×50, 45×45, 45×28, 44×20, 38×38, 35×30
