Smart Card
MIFARE Ultralight
-
Product introduction

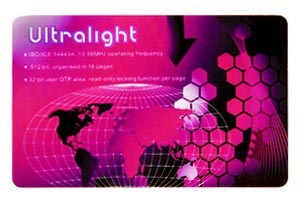

Ultralight U10 is the contactless IC card which is
made under NXP MF0 IC U10. We can offer PVC blank card, printing card, paper-sticker tag,
Key chain, TOKEN and thin & thick cards of various specifications according to
ISO14443A. The applications contain Door-control system, Checking-in system, Identification
system, Physical distribution system, Automation system and various member-cards such as:
meal-selling, subway, public transportation, club and so on. And also it contains electronic
consumption, electronic ticket, animal identification, target tracking, laundry management
and various payment systems.
-
Qualifications
- • Chip: NXP MF0 IC U10
- • Storage capacity: 512bit
- • Working frequency: 13.56 MHz
- • Communication rate: Max. 106KBoud
- • Operating distance: 0~10cm
- • Operating time: 1~2ms
- • Operating temperature: -20 ~ 55 ℃ (-68°F ~ +131°F)
- • EEPROM: >200, 000 times
- • Data retention: >5 years
- • Dimension: ISO standard card 85.6x54x0.82
- • Packaging materials: PVC, PET, PETG, 0.13mm copper wire
- • Encapsulation technology: Ultrasonic automatic plant line / Automatic touch welding
- • RF standard: ISO14443A
- • Available for size: 85.6×54, 83×20, 70×40, 50×50, 45×45, 45×28, 44×20, 38×38, 35×30
