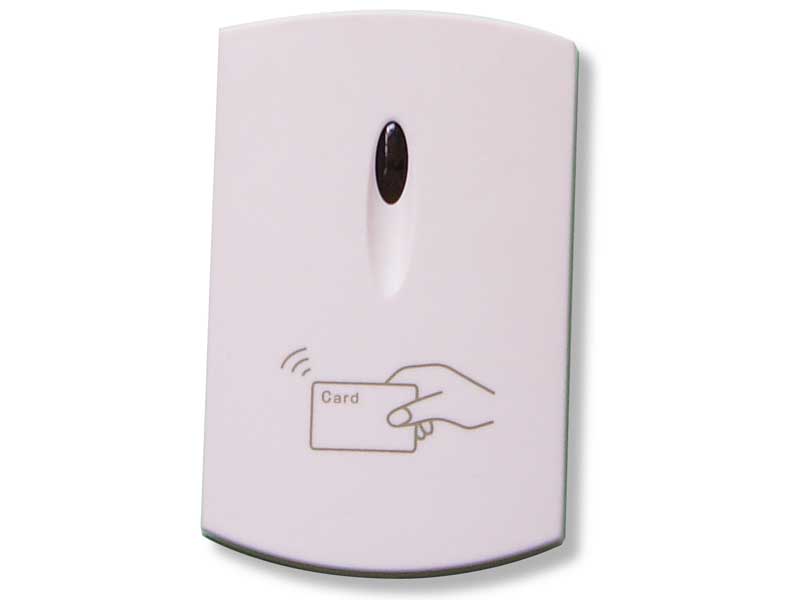

JMY350
JMY350 series are the popular type access card
reader. The way of installation is 86 electrician-boxes. The interface is RS485 &
Wiegand. There are LED status indicator and buzzer in the JMY350. So this has sound and
light show for reading-card status. You can set the function and parameters easily under
cooperation with JMY30x series access controller. And also you can enjoy from the
intelligent control.
-
Qualifications
- • Reading card frequency: 13. 56MHz
- • Operating distance: 0 ~ 100mm
- • Communication rate: 9600bps ~ 115200bps
-
• RF standard: ISO14443A & ISO14443B &
ISO15693
- • Status indicator: LED & Buzzer
- • Interface: RS485, Wiegand
- • Door opening method: IC Card + Bluetooth
-
• Operating temperature: -20 ~ +70 ℃ (-68 ~
158°F)
- • Power supply: DC 8~15V
