RFID Module
JMY6022
-
Description

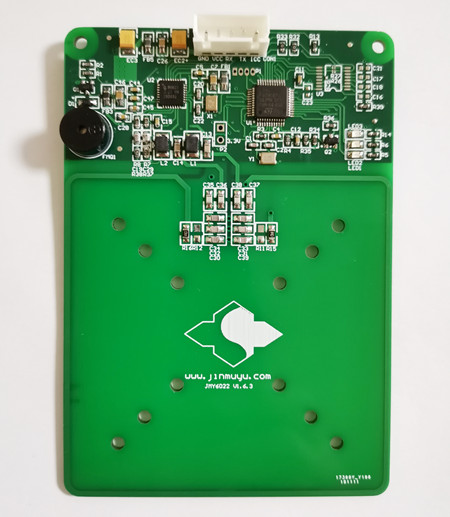

JMY6022 is a contactless IC card embedded reading and writing module designed based on the
NXP scheme. It fully supports the MIFARE series and ISO14443A and ISO14443B T=CL non-contact
CPU cards. The RF field strength is basically meeting the requirements of EMV2010 and PBOC
3.0. The card reader has built-in SAM card slot, supports any SAM card that conforms to the
ISO7816 (T=0 & T=1) standard, and supports the reset and operation of any rate of SAM
card. The 32-bit ARM microcontroller ensures that the reader has good performance and
reliability.
-
Main Characteristics
- • Modules integrated antenna, excellent consistency and stability
- • EMV2010 certification ability in RF part
- • 2 SAM slots, full fill payment system usage
- • 48MHz high speed MCU; 4Mbits external storage
- • External low-power RSA/ECC algorithm encryption chip
-
Qualifications
- • PCD: NXP RC663
- • PCB Layers：4
- • Working frequency: 13.56MHz
- • RF standard: ISO14443A、ISO14443B、ISO15693、ISO18000-3 MODE3
- • Anti collision ability: Full function anti collision; be able to set multi-cards or single card
- • Auto detecting card: Supported, default OFF, could be set
- • SAM slots: 2, T=0 & T=1 9600, 19200, 38400, 55800, 57600, 115200bps
- • Power supply: DC 5V (±10%)
- • Interface: UART\RS232\USB HID\USB PCSC on order
- • Interface level: UART 3.3V
- • Communication speed:
- IIC: Max.200Kbps
- UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps
- USB: 2.0 HID class
- • Max. command length:
- JCP04: 253bytes
- JCP05: 510bytes
- • Power consumption: Max.150mA
- • Operating distance: 100mm (M1 typical distance, depending on card quality)
- • Dimension: 100mm * 70mm * 12mm
- • Weight: About 30g
- • ISP: Supported
- • RoHS: By order
- • Operating temperature: -25 to +85°C
- • Storage temperature: -40 to +125°C
| Datasheet | |
| Card Operation Guide | |
| SDK&Sample Code | |
| PC Software | |
| DES Fire Tool | |
| Model NO. | JMY6022 | |||||||||||||||||||||||||
| PCD | NXP CL RC663 | |||||||||||||||||||||||||
| Interface | UART\RS232\USB HID\USB PCSC on order | |||||||||||||||||||||||||
| RF Standard |
|
|||||||||||||||||||||||||
| PICC |
|
