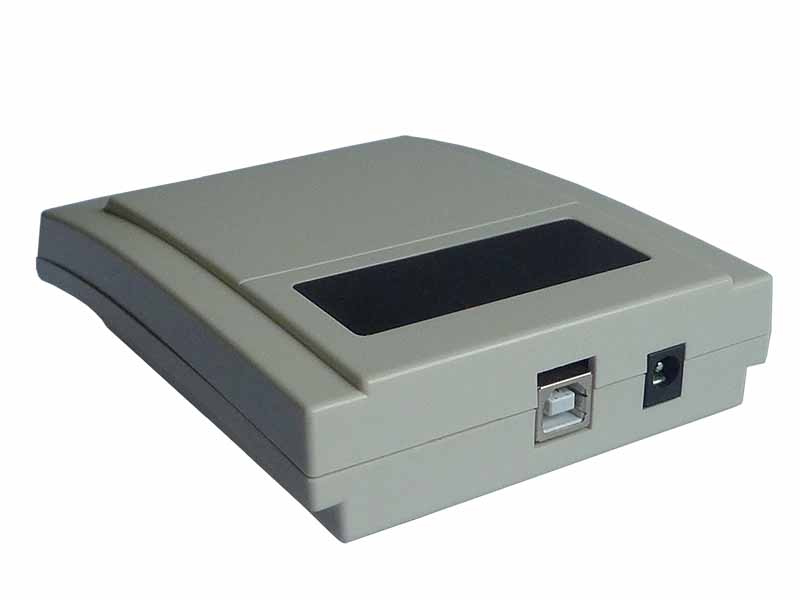

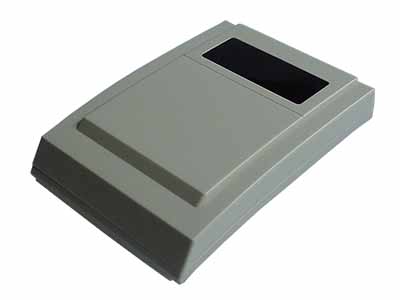

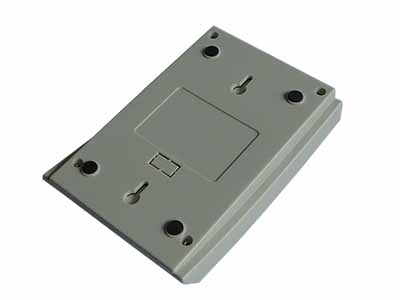

MR600 (Master Reader Classic with LED digital display, USB bridge)
MR600 series contactless smart reader is the desktop reader bases on NXP PCD or compatible
PCD. The reader inlays LED which is with 8 bits LED displayer. The reader fully supports the
IC card according to ISO14443A, ISO14443B, ISO15693 and ISO7816(T=0 & T=1); Various
contactless IC card under international standard. The reader embeds SAM card slot. We do the
optimization for application of domestic card system, so it can fully terms SAM card
according to ISO7816 (9600bps & 38400bps).
-
Main Characteristics
- • 8 digits LED displayer
- • Full function PC software
-
• support many kind of card/tag, just like a
development tool
-
Technical parameters
-
• PCD: NXP MF RC500, MF RC531, CL RC632, SL RC400
- • Working frequency: 13.56MHz
- • RF standard: ISO14443A, ISO14443B, ISO15693
-
• Operating distance: 80mm (MIFARE One, typical)
-
• SAM card slot: 1 slot, support ISO7816 (T=0,
9600bps&38400bps)
-
• Interface: USB (build in CP2102 USB to RS232
bridge)
- • Baud rate: 9600 ~ 115200 bps
- • Power supply: DC5V ± 10%
- • Power consumption: 1.5W
- • Dimension: 141mm * 100mm * 31mm
- • Weight: about 150g
-
• Operating temperature: -25 ~ +85 ℃ (-77 ~
+185°F)
-
• Storage temperature: -40 ~ +125 ℃ (-104 ~
+257°F)
- • PC software: TransWin
- • SDK: Base on Windows, free
-
• Sample code: VC, VB, C++ Builder, DELPHI, Power
Builder
- • ISP: Support
- • RoHS: By order
| Datasheet |
|
|
|
|
SDK&Sample Code
|
|
|
|
|
PC Software
|
|
|
|
|
CP210x Driver
|
|
|
|
|
Model NO.
|
MR600UA
|
MR600SA
|
MR600UC
|
MR600SC
|
MR600UG
|
MR600SG
|
MR600UH
|
MR600SH
|
| Interface |
USB |
Reserve |
|
USB |
Reserve |
USB |
Reserve |
| PCD |
NXP MF RC500 |
NXP MF RC531 |
NXP SL RC400 |
NXP CL RC632 |
| SAM card slot |
1 slot, termsed 9600, 38400bps |
| Display |
8 digits LED displayer |
| Buzzer |
yes |
| RF Standard |
ISO14443A |
|
ISO15693 |
| ISO14443A |
| ISO14443B |
| ISO15693 |
|
| Reading distance |
80mm |
| PICC |
|
MIFARE 1K
|
| MIFARE 4K |
| FM11RF08 |
| MIFARE Ultralight |
| MIFARE Ultralight C |
| MIFARE Mini |
| MIFARE DESFire |
| MIFARE Plus |
| MIFARE ProX |
| T=CL TYPE A |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
MIFARE 1K
|
| MIFARE 4K |
| FM11RF08 |
| MIFARE Ultralight |
| MIFARE Ultralight C |
| MIFARE Mini |
| MIFARE DESFire |
| MIFARE Plus |
| MIFARE ProX |
| T=CL TYPE A |
|
| SR176 |
| SRI512 |
| SRI1K |
| SRI2K |
| SRI4K |
| SRIX4K |
| AT88RF020 |
| T=CL TYPE B |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
NXP I.CODE SLI
|
| TI Tag_it HF-I |
| ST LRI |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
MIFARE 1K
|
| MIFARE 4K |
| FM11RF08 |
| MIFARE Ultralight |
| MIFARE Ultralight C |
| MIFARE Mini |
| MIFARE DESFire |
| MIFARE Plus |
| MIFARE ProX |
| T=CL TYPE A |
|
| SR176 |
| SRI512 |
| SRI1K |
| SRI2K |
| SRI4K |
| SRIX4K |
| AT88RF020 |
| T=CL TYPE B |
|
| NXP I.CODE SLI |
| TI Tag_it HF-I |
| ST LRI |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
