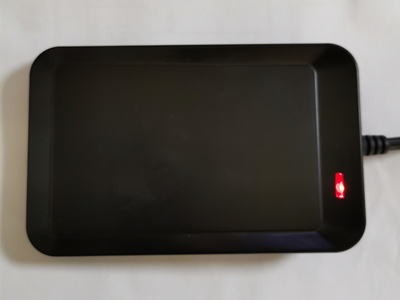

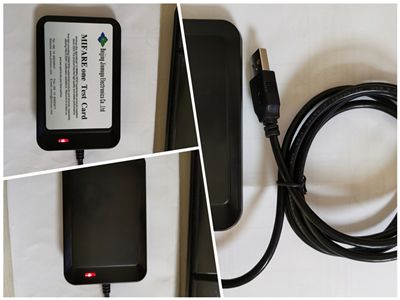

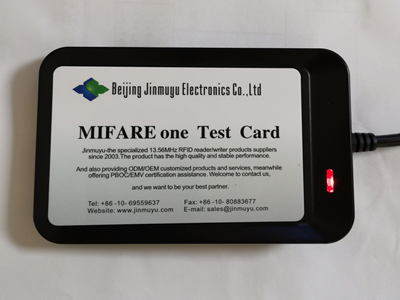

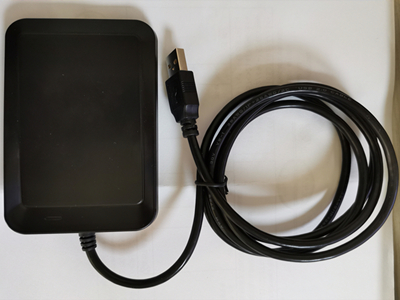

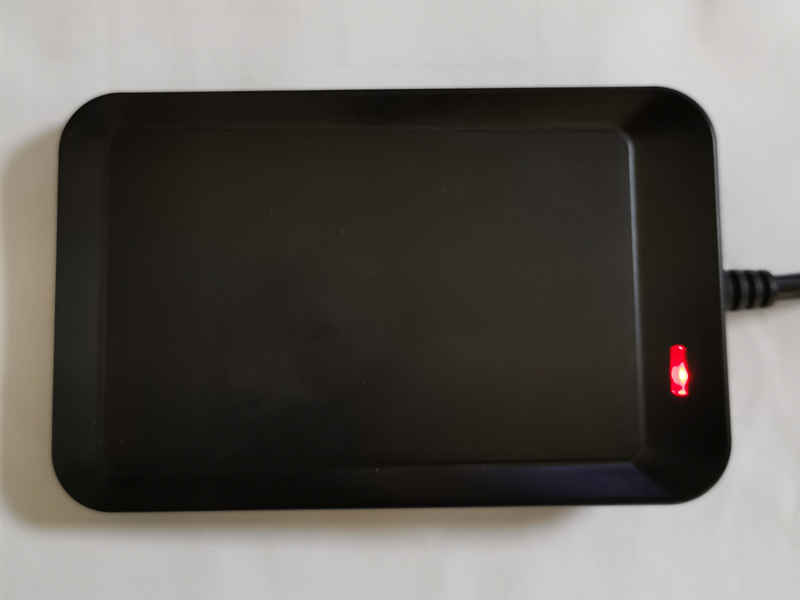

MR7805 (Master Reader Classic, RS232C or USB bridge)
MR7805 series reader supports series IC cards according to ISO14443, ISO15693; various
contactless IC card under international standard; especially the contactless CPU cards under
ISO14443-4. Meanwhile the reader's RF interface and protocol process are with EMV2010
LEVEL 1 certification ability. There are 1 SAM card slot in the reader(T=0 and T=1). The
reader supports card-reset of various communication rate; PPSS operation after card-reset.
Meanwhile the new outside casing show you a fresh and respect.
-
Main Characteristics
- • Full function PC software
- • Terms many kind of card/tag
-
• RF interface and protocol process with EMV2010
LEVEL 1 certification ability
-
Technical parameters
- • PCD: NXP RC663
- • Working frequency: 13.56MHz
- • RF standard: ISO14443A, ISO14443B, ISO15693
-
• Operating distance: 70mm (MIFARE One, typical)
-
• SAM card slot: 1 slot, terms ISO7816 (T=0 &
T=1, terms PPS, Max. 115200bps)
- • Display: 2 LEDs, green, red
- • Buzzer: Build in
-
• Interface: USB (build in CP2102 USB to RS232
bridge);USB PC/SC;USB HID keyboard simulator
- • Power supply: DC5V ± 10%
- • Power consumption: 0.9W
- • Dimension: 110mm * 70.12mm * 13.92mm
- • Weight: about 100g
-
• Operating temperature: -25 ~ +85 ℃ (-77 ~
+185°F)
-
• Storage temperature: -40 ~ +125 ℃ (-104 ~
+257°F)
- • PC software: TransWin
- • SDK: Base on Windows, free
-
• Sample code: VC, VB, C++ Builder, DELPHI, Power
Builder
- • ISP: Terms
- • RoHS: By order
| Datasheet |
|
|
|
|
|
|
|
SDK&Sample Code
|
|
|
|
|
PC Software
|
|
|
|
|
|
|
|
|
CP210x Driver
|
|
|
|
|
Model NO.
|
MR7805U
|
MR7805S(Reserve)
|
| PCD |
NXP RC663 |
| MCU |
N32L406 |
| Interface |
USB |
RS232C |
| SAM card slot |
1 slot, terms ISO7816 (T=0 & T=1, terms PPS, Max. 115200bps)
|
| Display |
2 LEDs, green, red |
| Buzzer |
yes |
| RF Standard |
| ISO14443A |
| ISO14443B |
| ISO15693 |
|
| ISO14443A |
| ISO14443B |
| ISO15693 |
|
| Reading distance |
70mm (MIFARE one typical) |
| PICC |
|
MIFARE 1K
|
| MIFARE 4K |
| FM11RF08 |
| MIFARE Ultralight |
| MIFARE Ultralight C |
| MIFARE Mini |
| MIFARE DESFire |
| MIFARE Plus |
| MIFARE ProX |
| T=CL TYPE A |
|
| SR176 |
| SRI512 |
| SRI1K |
| SRI2K |
| SRI4K |
| SRIX4K |
| AT88RF020 |
| T=CL TYPE B |
|
| NXP I.CODE SLI |
| TI Tag_it HF-I |
| ST LRI |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
|
MIFARE 1K
|
| MIFARE 4K |
| FM11RF08 |
| MIFARE Ultralight |
| MIFARE Ultralight C |
| MIFARE Mini |
| MIFARE DESFire |
| MIFARE Plus |
| MIFARE ProX |
| T=CL TYPE A |
|
| SR176 |
| SRI512 |
| SRI1K |
| SRI2K |
| SRI4K |
| SRIX4K |
| AT88RF020 |
| T=CL TYPE B |
|
| NXP I.CODE SLI |
| TI Tag_it HF-I |
| ST LRI |
|
| ISO7816 T=0 |
| ISO7816 T=1 |
|
|
